DriveML: Self-Drive machine learning projects

1. Introduction

The document introduces the DriveML package and how it can help you to build effortless machine learning binary classification models in a short period.

DriveML is a series of functions such as AutoDataPrep, AutoMAR, autoMLmodel. DriveML automates some of the complicated machine learning functions such as exploratory data analysis, data pre-processing, feature engineering, model training, model validation, model tuning and model selection.

This package automates the following steps on any input dataset for machine learning classification problems

Data cleaning
- Replacing NA, infinite values
- Removing duplicates
- Cleaning feature names
Feature engineering
- Missing at random features
- Missing variable imputation
- Outlier treatment - Oultier flag and imputation with 5th or 95th percentile value
- Date variable transformation
- Bulk interactions for numerical features
- Frequent tranformer for categorical features
- Categorical feature engineering - one hot encoding
- Feature selection using zero variance, correlation and AUC method
Model training and validation
- Automated test and validation set creations
- Hyperparameter tuing using random search
- Mutliple binary classification included like logistic regression, randomForest, xgboost, glmnet, rpart
- Model validation using AUC value

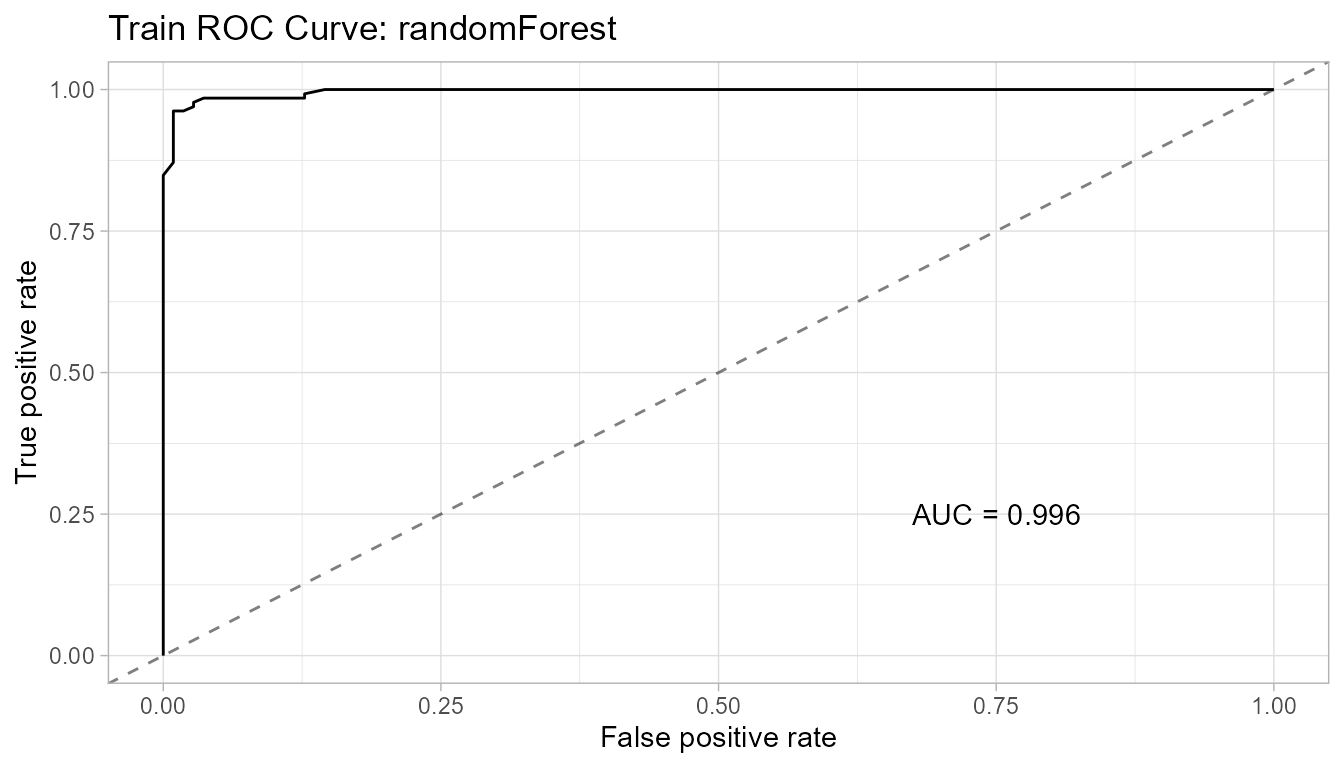

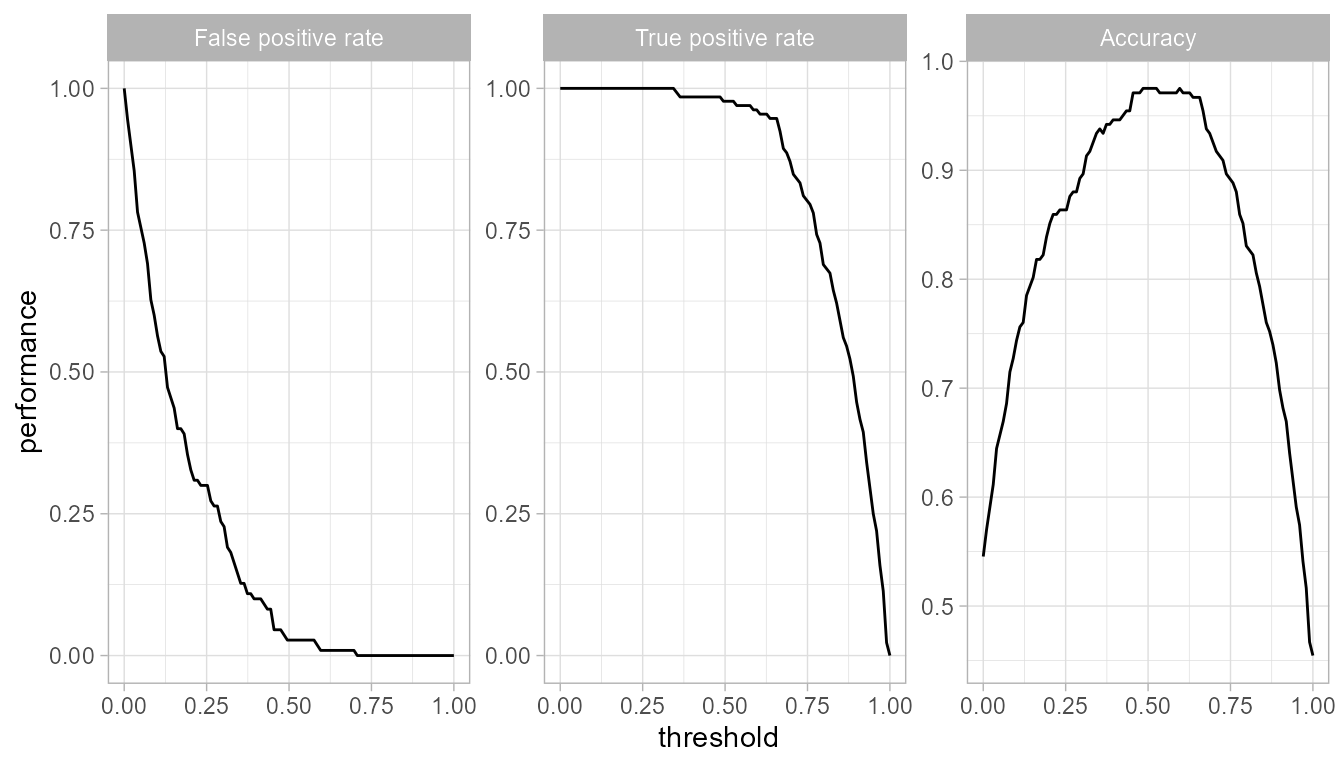

- Model plots like training and testing ROC curve, threshold plot
- Probaility scores and model objects
Model Explanation
- Lift plot
- Partial dependence plot

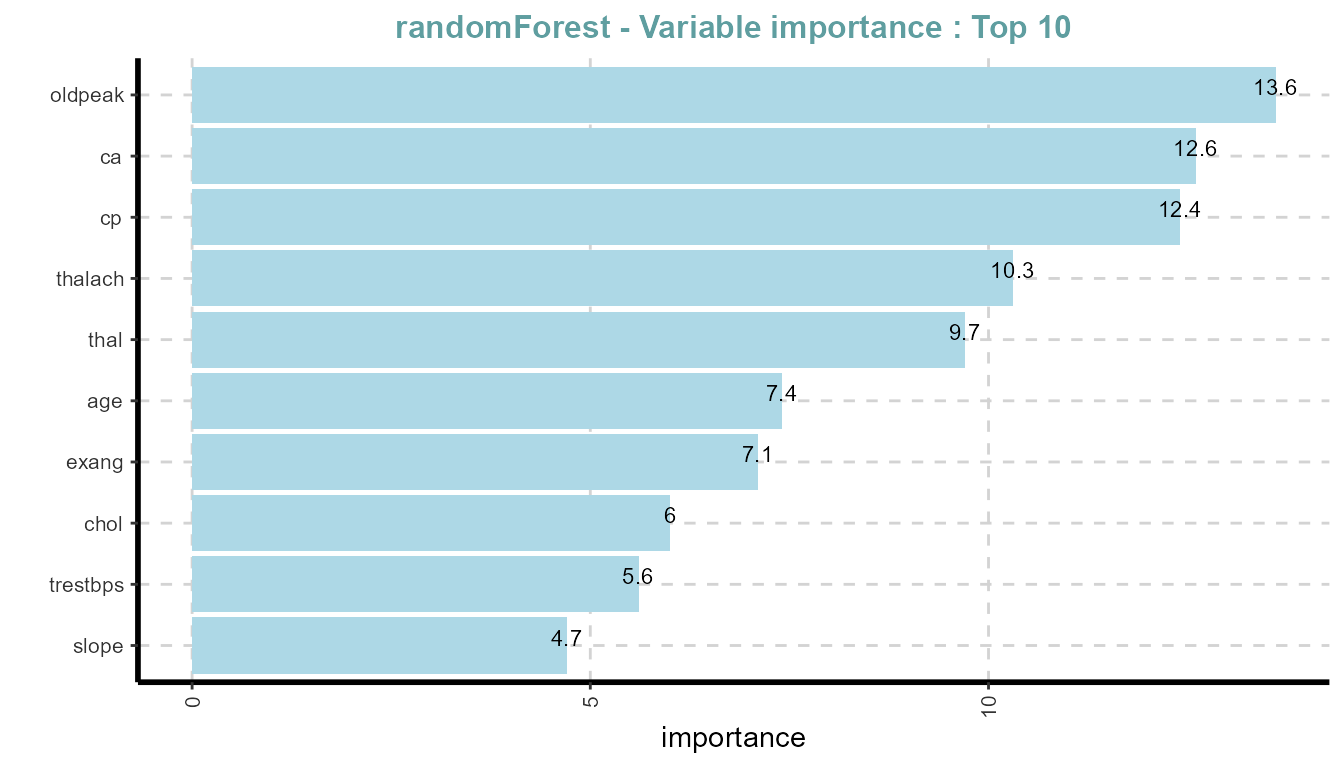

- Feature importance plot
Model report
- model output in rmarkdown html format

Additionally, we are providing a function SmartEDA for Exploratory data analysis that generates automated EDA report in HTML format to understand the distributions of the data. Please note there are some dependencies on some other R pacakges such as MLR, caret, data.table, ggplot2, etc. for some specific task.

To summarize, DriveML package helps in getting the complete Machine learning classification model just by running the function instead of writing lengthy r code.

Missing not at random features

Algorithm: Missing at random features

Select all the missing features X_i where i=1,2,…..,N.
For i=1 to N:
- Define Y_i, which will have value of 1 if X_i has a missing value, 0 if X_i is not having missing value
- Impute all X_(i+1 ) 〖to X〗_(N ) variables using imputation method
- Fit binary classifier f_m to the training data using Y_i ~ X_(i+1 ) 〖+⋯+ X〗_(N )
- Calculate AUC ∝_ivalue between actual Y_i and predicted Y ̂_i
- If ∝_i is low then the missing values in X_i are missing at random,Y_i to be dropped
- Repeat steps 1 to 4 for all the independent variables in the original dataset

2. Functionalities of DriveML

The DriveML R package has three unique functionalities as

Data Pre-processing and Data Preparation
- autoDataPrep function to generate a novel features based on the functional understanding of the dataset
Building Machine Learning Models
- autoMLmodel function to develope baseline machine learning models using regression and tree based classfication techniques
Generating Model Report
- autoMLReport function to print the machine learning model outcome in HTML format

3. Machine learning classfication model use-case using DriveML

About the dataset

This database contains 76 attributes, but all published experiments refer to using a subset of 14 of them. In particular, the Cleveland database is the only one that has been used by ML researchers to this date. The “goal” field refers to the presence of heart disease in the patient. It is integer valued from 0 (no presence) to 4.

Data Source https://archive.ics.uci.edu/ml/datasets/Heart+Disease

Install the package “DriveML” to get the example data set.

library("DriveML")
library("SmartEDA")
## Load sample dataset from ISLR pacakge
data(heart)

more detailed attribute information is there in DriveML help page

3.1 Data Exploration

For data exploratory analysis used SmartEDA package

Overview of the data

Understanding the dimensions of the dataset, variable names, overall missing summary and data types of each variables

# Overview of the data - Type = 1
ExpData(data=heart,type=1)

# Structure of the data - Type = 2
ExpData(data=heart,type=2)

Overview of the data

Descriptions	Value
Sample size (nrow)	303
No. of variables (ncol)	14
No. of numeric/interger variables	14
No. of factor variables	0
No. of text variables	0
No. of logical variables	0
No. of identifier variables	0
No. of date variables	0
No. of zero variance variables (uniform)	0
%. of variables having complete cases	100% (14)
%. of variables having >0% and <50% missing cases	0% (0)
%. of variables having >=50% and <90% missing cases	0% (0)
%. of variables having >=90% missing cases	0% (0)

Structure of the data

Index	Variable_Name	Variable_Type	Sample_n	No_of_distinct_values
1	age	integer	303	41
2	sex	integer	303	2
3	cp	integer	303	4
4	trestbps	integer	303	49
5	chol	integer	303	152
6	fbs	integer	303	2
7	restecg	integer	303	3
8	thalach	integer	303	91
9	exang	integer	303	2
10	oldpeak	numeric	303	40
11	slope	integer	303	3
12	ca	integer	303	5
13	thal	integer	303	4
14	target_var	integer	303	2

Summary of numerical variables

ExpNumStat(heart,by="GA",gp="target_var",Qnt=seq(0,1,0.1),MesofShape=2,Outlier=TRUE,round=2)

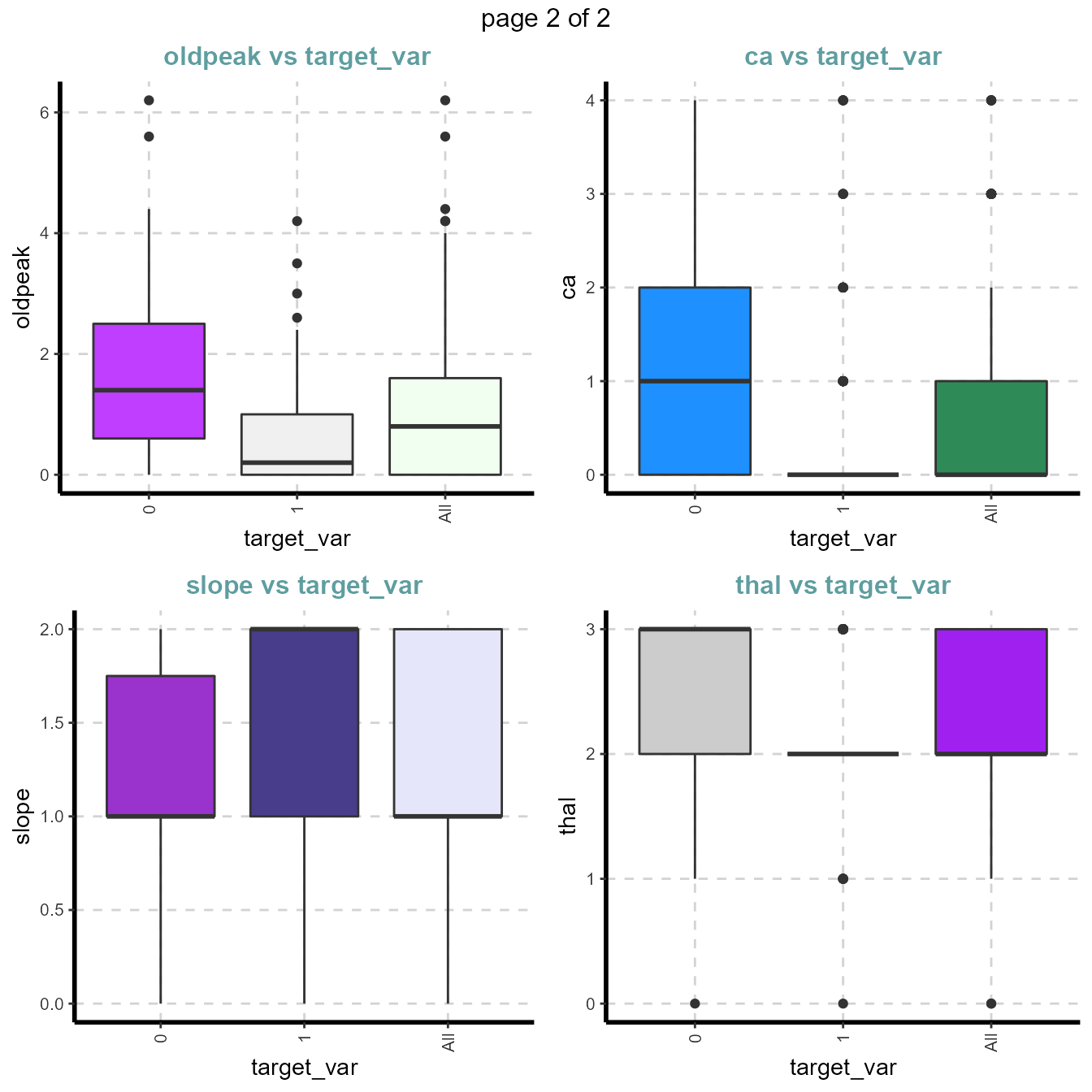

Distributions of Numerical variables

Box plots for all numerical variables vs categorical dependent variable - Bivariate comparison only with classes

Boxplot for all the numerical attributes by each class of the target variable

plot4 <- ExpNumViz(heart,target="target_var",type=1,nlim=3,fname=NULL,Page=c(2,2),sample=8)
plot4[[1]]

Summary of categorical variables

Cross tabulation with target_var variable

Custom tables between all categorical independent variables and the target variable

ExpCTable(Carseats,Target="Urban",margin=1,clim=10,nlim=3,round=2,bin=NULL,per=F)

VARIABLE	CATEGORY	target_var:0	target_var:1	TOTAL
sex	0	24	72	96
sex	1	114	93	207
sex	TOTAL	138	165	303
fbs	0	116	142	258
fbs	1	22	23	45
fbs	TOTAL	138	165	303
restecg	0	79	68	147
restecg	1	56	96	152
restecg	2	3	1	4
restecg	TOTAL	138	165	303
exang	0	62	142	204
exang	1	76	23	99
exang	TOTAL	138	165	303
slope	0	12	9	21
slope	1	91	49	140
slope	2	35	107	142
slope	TOTAL	138	165	303
target_var	0	138	0	138
target_var	1	0	165	165
target_var	TOTAL	138	165	303

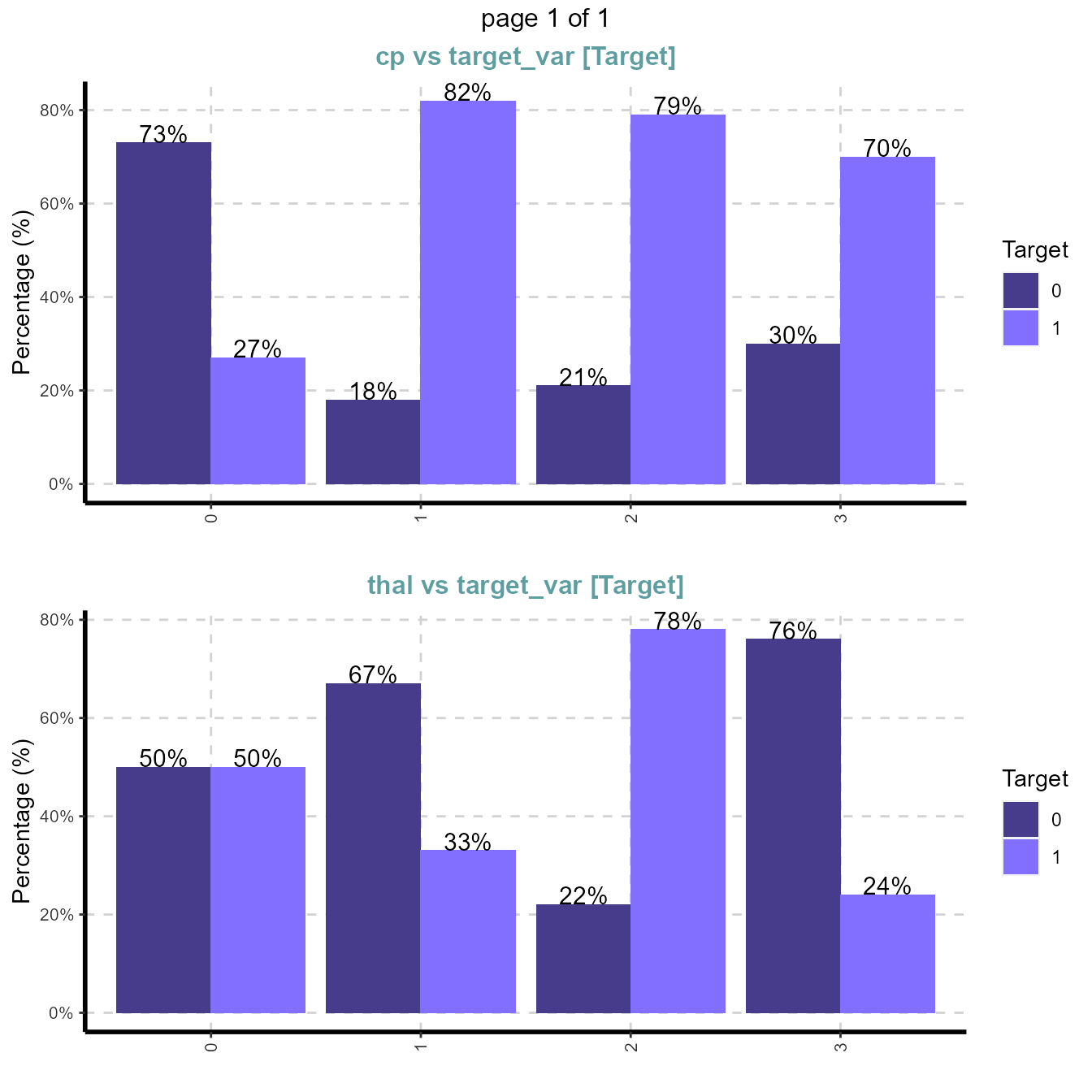

Distributions of categorical variables

Stacked bar plot with vertical or horizontal bars for all categorical variables

plot5 <- ExpCatViz(heart,target = "target_var", fname = NULL, clim=5,col=c("slateblue4","slateblue1"),margin=2,Page = c(2,1),sample=2)
plot5[[1]]

Outlier analysis using boxplot

ExpOutliers(heart, varlist = c("oldpeak","trestbps","chol"), method = "boxplot",  treatment = "mean", capping = c(0.1, 0.9))

Category	oldpeak	trestbps	chol
Lower cap : 0.1	0	110	188
Upper cap : 0.9	2.8	152	308.8
Lower bound	-2.4	90	115.75
Upper bound	4	170	369.75
Num of outliers	5	9	5
Lower outlier case
Upper outlier case	102,205,222,251,292	9,102,111,204,224,242,249,261,267	29,86,97,221,247
Mean before	1.04	131.62	246.26
Mean after	0.97	130.1	243.04
Median before	0.8	130	240
Median after	0.65	130	240

3.2 Data preparations using `autoDataprep`

dateprep <- autoDataprep(data = heart,
                         target = 'target_var',
                         missimpute = 'default',
                         auto_mar = FALSE,
                             mar_object = NULL,
                             dummyvar = TRUE,
                             char_var_limit = 15,
                             aucv = 0.002,
                             corr = 0.98,
                             outlier_flag = TRUE,
                             uid = NULL,
                             onlykeep = NULL,
                             drop = NULL)

print(dateprep)

## Data preparation result
## Call:
##  autoDataprep(data = heart, target = "target_var", missimpute = "default",      auto_mar = FALSE, mar_object = NULL, dummyvar = TRUE, char_var_limit = 15,      aucv = 0.002, corr = 0.98, outlier_flag = TRUE, uid = NULL,      onlykeep = NULL, drop = NULL)
##
##  *** Data preparation summary ***
## Total no. of columns available in the data set:  14
## No. of numeric columns:                          8
## No. of factor / character columns:               0
## No. of date columns:                             0
## No. of logical columns:                          0
## No. of unique columns:                           0
## No. of MAR columns:                              0
## No. of dummy variables created:                  0
##
##  *** Variable reduction ***
## Step 1 - Checked and removed useless variables:         6
## Step 2 - No. of variables before fetature reduction:    22
## Step 3 - No. of zero variance columns (Constant):       0
## Step 4 - No. of high correlated or bijection columns:   3
## Step 5 - No. of low AUC valued columns:                 2
## *Final number of columns considered for ML model:       17
##
##  *** Data preparation highlights ***
## Missing replaced with {
## --> factor = imputeMode()
## --> integer = imputeMean()
## --> numeric = imputeMedian()
## --> character = imputeMode() }

train_data <- dateprep$master_data

3.3 Machine learning models using `autoMLmodel`

Automated training, tuning and validation of machine learning models. This function includes the following binary classification techniques

+ Logistic regression - logreg
+ Regularised regression - glmnet
+ Extreme gradient boosting - xgboost
+ Random forest - randomForest
+ Random forest - ranger
+ Decision tree - rpart

mymodel <- autoMLmodel( train = heart,
                        test = NULL,
                        target = 'target_var',
                        testSplit = 0.2,
                        tuneIters = 100,
                        tuneType = "random",
                        models = "all",
                        varImp = 10,
                        liftGroup = 50,
                        maxObs = 4000,
                        uid = NULL,
                        htmlreport = FALSE,
                        seed = 1991)

## [19:11:57] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:58] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:58] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:58] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:59] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:59] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:59] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:59] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:11:59] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:00] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:00] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:00] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:01] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:01] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:01] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:01] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:01] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:02] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:02] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:02] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:03] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:03] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:03] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:03] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:04] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:04] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:04] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:04] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:05] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:05] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:05] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:06] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:06] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:06] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:06] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:07] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:07] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:07] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:08] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:08] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:08] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:08] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:09] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:09] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:09] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:10] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:10] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:10] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:11] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:11] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:11] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:11] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:11] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:12] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:12] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:12] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:12] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:13] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:13] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:13] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:13] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:14] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:14] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:14] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:15] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:15] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:15] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:15] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:16] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:16] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:16] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:16] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:17] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:17] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:17] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:18] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:20] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:20] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:20] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:20] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:21] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:21] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:21] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:21] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:22] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:22] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:22] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:22] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:22] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:23] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:23] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:23] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:24] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:24] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:24] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:24] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:25] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:25] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:25] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:25] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.
## [19:12:26] WARNING: amalgamation/../src/learner.cc:1095: Starting in XGBoost 1.3.0, the default evaluation metric used with the objective 'binary:logistic' was changed from 'error' to 'logloss'. Explicitly set eval_metric if you'd like to restore the old behavior.

3.3 Model output

Model performance

Model	Fitting time	Scoring time	Train AUC	Test AUC	Accuracy	Precision	Recall	F1_score
glmnet	20.457 secs	0.007 secs	0.928	0.908	0.820	0.824	0.848	0.836
logreg	19.822 secs	0.004 secs	0.929	0.906	0.820	0.824	0.848	0.836
randomForest	21.872 secs	0.01 secs	0.996	0.905	0.803	0.784	0.879	0.829
ranger	23.167 secs	0.033 secs	0.999	0.894	0.803	0.784	0.879	0.829
xgboost	28.954 secs	0.006 secs	0.999	0.912	0.803	0.800	0.848	0.824
rpart	21.028 secs	0.004 secs	0.932	0.857	0.803	0.818	0.818	0.818

Randomforest model Receiver Operating Characteristic (ROC) and the variable Importance

Training dataset ROC

TrainROC <- mymodel$trainedModels$randomForest$modelPlots$TrainROC
TrainROC

Test dataset ROC

TestROC <- mymodel$trainedModels$randomForest$modelPlots$TestROC
TestROC

Variable importance

VarImp <- mymodel$trainedModels$randomForest$modelPlots$VarImp
VarImp

## [[1]]

Threshold

Threshold <- mymodel$trainedModels$randomForest$modelPlots$Threshold
Threshold

Automated machine learning classification model functions

Dayananda Ubrangala, Sayan Putatunda, Kiran R, Ravi Prasad Kondapalli

2021-06-17

1. Introduction

Missing not at random features

2. Functionalities of DriveML

3. Machine learning classfication model use-case using DriveML

About the dataset

3.1 Data Exploration

Overview of the data

Summary of numerical variables

Distributions of Numerical variables

Summary of categorical variables

Distributions of categorical variables

Outlier analysis using boxplot

3.2 Data preparations using `autoDataprep`

3.3 Machine learning models using `autoMLmodel`

3.3 Model output

DriveML: Self-Drive machine learning projects

Automated machine learning classification model functions

Dayananda Ubrangala, Sayan Putatunda, Kiran R, Ravi Prasad Kondapalli

2021-06-17

1. Introduction

Missing not at random features

2. Functionalities of DriveML

3. Machine learning classfication model use-case using DriveML

About the dataset

3.1 Data Exploration

Overview of the data

Summary of numerical variables

Distributions of Numerical variables

Summary of categorical variables

Distributions of categorical variables

Outlier analysis using boxplot

3.2 Data preparations using autoDataprep

3.3 Machine learning models using autoMLmodel

3.3 Model output

3.2 Data preparations using `autoDataprep`

3.3 Machine learning models using `autoMLmodel`
